Bi-polar Universal Shunt Regulator Board

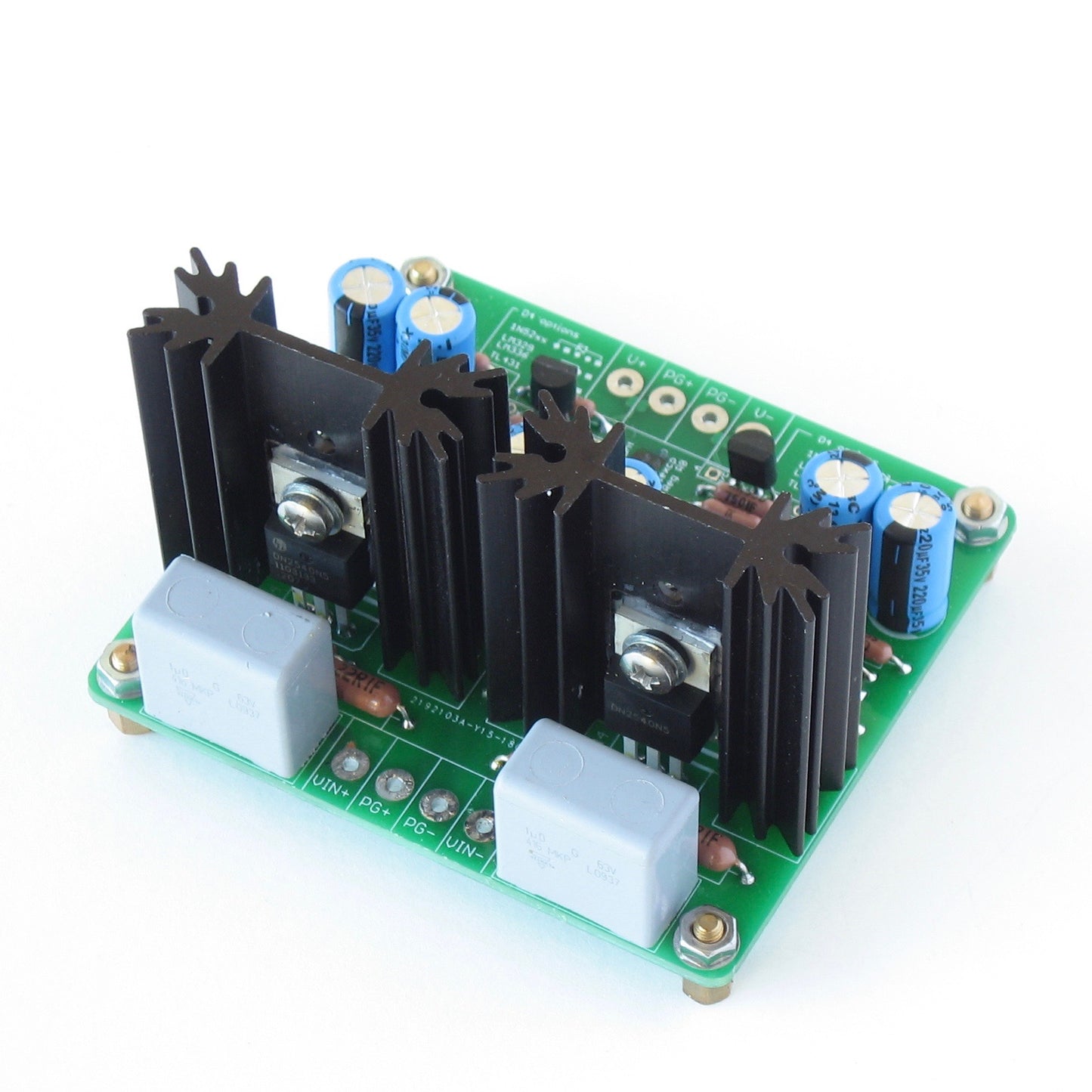

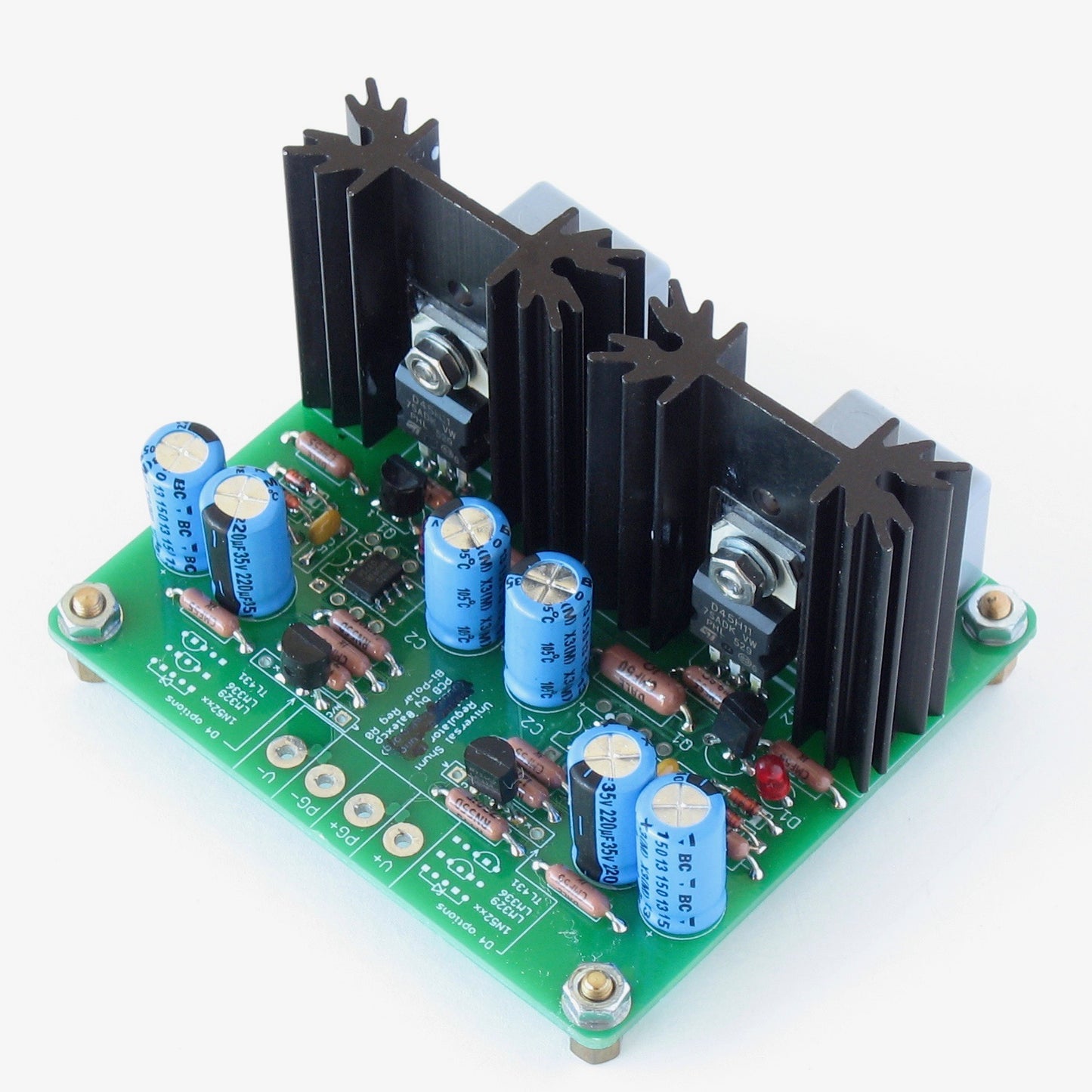

The Bi-polar Universal Shunt Regulator Board contains a pair of high performance shunt voltage regulators optimized for audio use. It is suitable for powering hi-fidelity small signal audio circuitry.
The Bi-polar Universal Shunt Regulator Board implements the design by Walt Jung that first appeared in Walt Jung's AudioXpress interview of 10/2012.
This board is being sold with Mr. Jung's kind permission, but in no way it is endorsed or supported by him.
- Schematic and discussion (at waltjung.org)

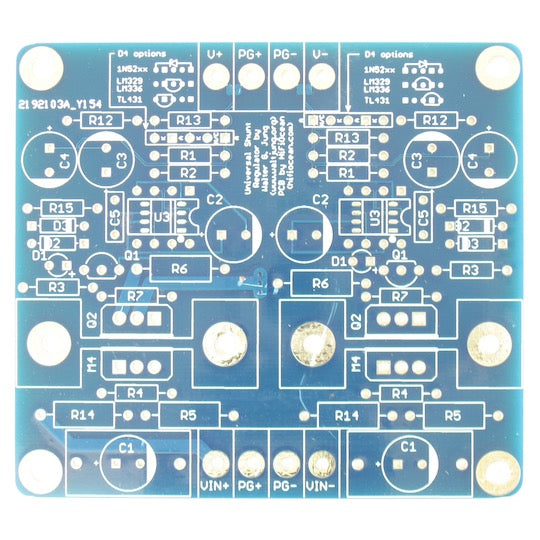

- Board size and component placement
- Part list (BOM)
- Shared project at Mouser (includes parts for various output voltages)
